Name: CT series Hot air circulation oven

Keywords: CT series Hot air circulation oven
Description: Product introduction CT series hot air circulation oven is equipped with low noise, high temperature axial fan and automatic temperature control system, and the whole circulation system is totally enclosed.The thermal efficiency of the oven is increased…

Details

Product introduction

    CT series hot air circulation oven is equipped with low noise, high temperature axial fan and automatic temperature control system, and the whole circulation system is totally enclosed.The thermal efficiency of the oven is increased from the traditional drying room 3-7% to the current 35-45%, and the maximum thermal efficiency is up to 50%.The design of CT hot air circulation oven has made our country's hot air circulation oven reach the advanced level both at home and abroad.It saves a great deal of energy for our country, and improves the economic benefit of the enterprise.In 1990, the State Administration of Medicine issued the industry standard, the unified model for RXH.

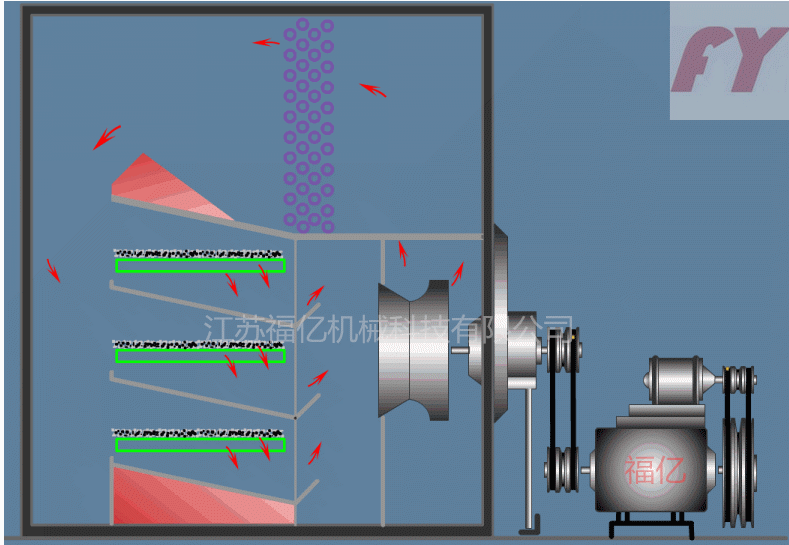

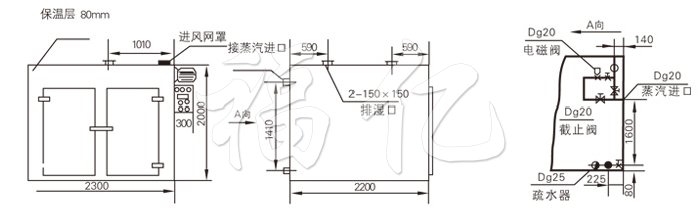

Schematic drawing













Technical specifications

Industry standard model

Technical parameter

Model specification

Amount of drying per time
(kg)

Power
(kw)

Steam consumption
(kg/h)

Cooling area
(m2)

Air volume
(m3/h)

Temperature difference
(oC)

Baking disk

Outline size

Width * depth * high

Auxiliary drying machine

Equipment weight

RXH-14-B

CT-Ⅰ

120

1.1

20

20

2800

±2

48

2430×1200×2375

2

1200

RXH-27-B

CT-Ⅱ

240

2.2

40

40

5200

±2

96

2430×2200×2433

4

1500

RXH-41-B

CT-Ⅲ

360

3

60

80

8000

±2

144

3430×2200×2620

6

2000

RXH-54-B

CT-Ⅳ

480

4

80

100

9800

±2

192

4460×2200×2620

8

2300

RXH-5-C

CT-C-O

25

0.45

5

5

3450

±2

16

1130×1100×1750

0

800

RXH-7-C

CT-C-ⅠA

50

0.45

10

10

3450

±2

24

1400×1200×2000

1

1000

RXH-14-C

CT-C-Ⅰ

120

0.45

18

20

3450

±2

48

2300×1200×2000

2

1500

RXH-27-C

CT-C-Ⅱ

240

0.9

36

40

6900

±2

96

2300×2200×2000

4

1800

RXH-27A-C

CT-C-ⅡA

240

0.9

36

40

6900

±2

96

4460×1200×2290

4

1800

RXH-41-C

CT-C-Ⅲ

360

1.35

54

80

10350

±2

144

3430×2200×2000

6

2200

RXH-42A-C

CT-C-ⅢA

360

1.35

54

80

10350

±2

144

2300×3200×2000

6

2200

RXH-54-C

CT-C-Ⅳ

480

1.8

72

100

13800

±2

192

4460×2200×2290

8

2800

RXH-25-A

High efficiency, high temperature, far infrared sterilization oven, power matching, according to temperature requirements

1200×1000×1600

1

1200



Adaptive material
  Apply to pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other materials, products and heating, curing, drying, dehydration. Such as raw materials, raw materials, Chinese herbal medicine, extract, powder, granules, powder, pills, water bottles, pigment dyes, dehydrated vegetables, dried fruit and melons, sausage, plastic resin, electrical components, paint etc..

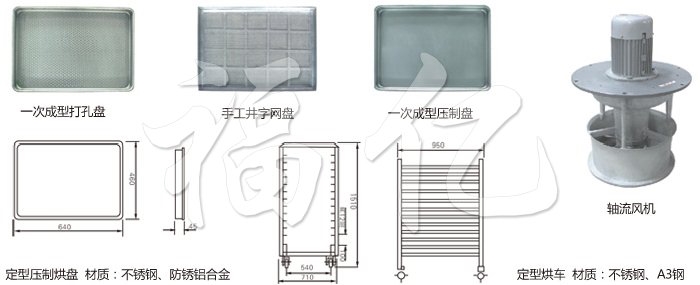

Accessories series
