Name: ZPG series Hollow Blade Dryer

Keywords: ZPG series Hollow Blade Dryer
Description: Product introduction Hollow blade dryer,Applicable for drying or cooling of paste, particle, powder and slurry state of material, perform the process of drying, cooling, heating, sterilizing, reacting and combustion under low temperature. The special s…

Details

Product introduction

     Hollow blade dryer,Applicable for drying or cooling of paste, particle, powder and slurry state of material, perform the process of drying, cooling, heating, sterilizing, reacting and combustion under low temperature. The special stirring and heating transferring blade, makes high heat transferring efficiency, and provide self-cleaning function. The special chock shaped stirring and heat transferring blade has high heating efficiency and self-cleaning function of the heating transferring surface.
Working principle

    Hollow chock shaped blades are concentrated on the hollow shaft. Heat media flow through the blade from the hollow shaft. The heat transferring area in the effective volume is very high. The temperature range of heating media is -40 ℃ to 320 ℃ . It might be steam, or liquid state, such as steam, thermal oil etc. Indirect heating, there's no heat carried out by air. All heat is utilized for to drying the material except the lost of heat insulation layers. The surface of chock shaped blade has self-cleaning function. The relative movements of the product particles and the chocked shaped surface might clean the material attached to the chock shaped surface, so to keep the cleanliness of heat transferring surface during working. The shell of hollow blade dryer is Ω shape. 2 or 4 pieces of hollow stirring shaft are usually equipped in the shell. To avoid any leakage of material, there're sealed terminal cover and top cover with the shell. The heat transferring media flow through the rotation connector, jacket's shell and hollow stirring shaft. To ensure best transferring effect, the hollow stirring shaft adopts different interior structure in accordance with different heating media.


Characteristics

The heat consumption of blade is low

No heat carried out by the air because of indirect heating.

there's no heat insulation layer with the exterior wall of the dryer.

It consumes 1.2 kg of steam to evaporate 1kg of water for to drying slurry state of material

The cost of the blade dryer is low

The unit effective volume has very large heat transferring surface.

Processing time is shorted, the size of the equipment becomes small.



The building area and place are sharply decreased.

The range of material to be processed is wide

Heat sensitive material and the materials to be processed under high temperature might be processed with different heating media.

The normal media are: steam, thermal oil, hot water and chill water. It might be continuous or batch operation, widely used in many areas.



The pollution is less

Without any carrying air, very few powder is carried out.

The solvent evaporated is very few, it easy to be processed.

For the material that might cause pollution or the solvent to be recovered, it might adopt sealed circulation.

The operation cost is low

1hour/day.operator is enough for normal operation.

Low stirring speed and reasonable structure.

The worn amount is few, and the maintenance fee is low.

Steady operation

The material particles fully contact heat transferring surface, because of the special compressing and swell-stirring effect of the chock shaped blade.

The difference of the temperature, humidity and mi Material to be dried

Applications

       Blade dryer has been successfully used in food, chemical, petrochemical, dye, industrial sludge and other fields. Equipment heat, cooling, mixing features make it to complete the following unit operations: calcination (low temperature), cooling, drying (solvent recovery), heating (melting), response and sterilization. Mixing blades at the same time the heat transfer surface, the effective volume per unit area of heat transfer increases, reducing the processing time. Heat transfer surfaces in wedge-shaped blades with self-cleaning function. Compression - Expansion mixing features make the material mixed uniformly. Material along the axis into a "plug flow" movement, in the axial zone, the material temperature, humidity, mixing a very small degree of gradient.
1. Conducting oil to do with the heat medium, blade dryer to complete the work of low-temperature calcination. Such as: calcium sulfate dihydrate (Ca2SO4 · 2H2O) calcined into calcium sulfate hemihydrate (Ca2SO4 · 1/2H2O). Sodium bicarbonate (NaHCO3) into calcined soda (Na2CO3) and so on.
2. Pass into the cooling medium, such as water, salt, etc. can be used to cool the cooling. Such as: use of soda ash industry in blade-type cooler base machine to replace the old air-cooled cooler base machine, saving energy and exhaust gas processing equipment, lower operating costs, but also for titanium, nickel alloy powder and all kinds of powder granular materials cooling. On a single machine where the material can be cooled from 1000 °C to less than 40 °C.
3.Dry, the main function of equipment, do not use hot air to solvent recovery, energy consumption, environmental control is easy to deal with the ideal state. On the need to recover solvents, heat-sensitive materials, particularly flammable adapt easily oxidized. Has been widely used in fine chemical, petrochemical, dye industry.
4. Axial range, temperature, humidity, mixing degree of uniformity, so equipment can be used to heating or melting, or some solid material response. In the compound and modified starch industries have been successfully used. Blade dryer can be used to carry out sterilization of food and flour. Unit within the effective volume of a large heating area, will soon be material heated to sterilization temperature, to avoid prolonged heating change the quality of materials.

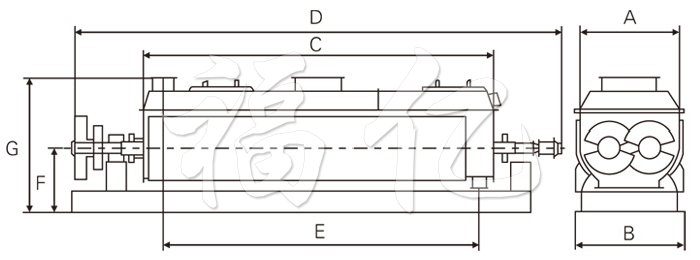

Sketch of installation structure

Technical specifications

Project/model

JYG3

JYG9

JYG13

JYG18

JYG29

JYG41

JYG52

JYG68

JYG81

JYG95

JYG110

Heat transfer area(m2)

3

9

13

18

29

41

52

68

81

95

110

Effective volume(m3)

0.06

0.32

0.59

1.09

1.85

2.8

3.96

5.21

6.43

8.07

9.46

Speed range (rmp)

15-30

10-25

10-25

10-20

10-20

10-20

10-20

10-20

5-15

5-15

5-10

Power(kw)

2.2

4

5.5

7.5

11

15

30

45

55

75

95

Width of body A(mm)

306

584

762

940

1118

1296

1476

1652

1828

2032

2210

Total widthB(mm)

736

841

1066

1320

1474

1676

1854

2134

1186

2438

2668

Width of body C(mm)

1956

2820

3048

3328

4114

4724

5258

5842

6020

6124

6122

Total length D(mm)

2972

4876

5486

5918

6808

7570

8306

9296

9678

9704

9880

Feed distance E(mm)

1752

2540

2768

3048

3810

4420

4954

5384

5562

5664

5664

Center height F(mm)

380

380

534

610

762

915

1066

1220

1220

1220

1220

Total height H(mm)

762

838

1092

1270

1524

1778

2032

2362

2464

2566

2668

Intake port N(inch)

3/4

3/4

1

1

1

1

11/2

11/2

11/2

11/2

2

Outlet O(inch)

3/4

3/4

1

1

1

1

11/2

11/2

11/2

11/2

2
