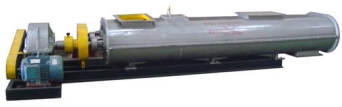

Name: 2SJ Series twin shaft mixer

Keywords: 2SJ Series twin shaft mixer
Description: Working principle: Twin shaft mixer at work, the material through the feed port into the cylinder, two screw shaft in the motor drive with the same speed as reverse rotation, the material rotates and moves along with the, mixed …

Details

Working principle:

    Twin shaft mixer at work, the material through the feed port into the cylinder, two screw shaft in the motor drive with the same speed as reverse rotation, the material rotates and moves along with the, mixed with each other complete mixing. There is a certain gap between the two spiral shafts, the rotating direction of different materials with each other, can improve the effect of mixing.

Performance characteristics :

    Twin shaft mixer  is an ideal equipment for mixing powder materials, which has the advantages of compact structure, uniform mixing, no dust, environmental protection requirements, and so on.

The main technical parameters of 2SJ series twin shaft mixer are as follows:



Parameter/Model

2SJ-500

2SJ-600

2SJ-700

2SJ-800

Mixing blade diametermm

500

600

700

800

Effective lengthm

3.5

4.0

2.6

2.6

Maximum production capacityt/h

20-25

30-35

40-45

50-55

Speedrpm

50

50

50

50

Motor powerkw

11

30

30

30

Reducer type

JZQ500

JZQ 650

JZQ 700

JZQ 800

 Design sprinkler system according to customer's requirement
