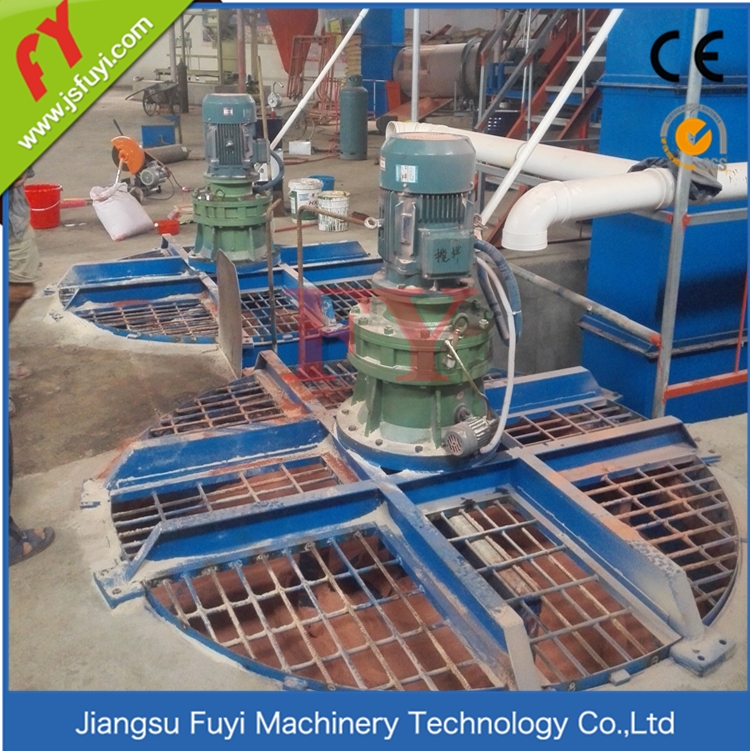

Name: YBJ series disc mixing machine

Keywords: YBJ series disc mixing machine
Description: Brief introduction This machine is one of common equipments in phosphate and compound fertilizer industry, and its main function is to mix the raw materials. This machine runs smoothly, mix uniformity, easy to control the discharge,mixing tank is lined wit…

Details

Brief introduction

This machine is one of common equipments in phosphate and compound fertilizer industry, and its main function is to mix the raw materials. This machine runs smoothly, mix uniformity, easy to control the discharge,mixing tank is lined with stainless plate, and has the features of not easy to viscidly the materials,wear-resisting,convenient to discharge, operate, maintain,etc.


Machine can be divided into three parts:

1Frame: all the machines agent all installed fixed on the rack, the rack of the machine are used for high quality carbon steel, channel steel welded together, and through the strict product qualified certification and specific process requirements, has reached the purpose of the use of the machine.
2Transmission connecting part: This machine adopts the cycloidal pin gear speed reducer to drive the main shaft rotating work, the main work of the host machine is using nylon column pin is the transmission connector of the tooth and the transmission drive, convenient to assembly and maintenance
3Mixing part: to the shaft by the driving wheel through a pin coupling. The material can be evenly overturned in the mixing chamber, so that the material can be fully mixed, thereby greatly reducing the residual amount of the material.

Technical parameter

Model

YBJ-1600

YBJ-2200

YBJ-2500

YBJ-2800

YBJ-3000

Disc diameter(mm)

1600

2200

2500

2800

3000

Wall heightmm

400

500

500

600

600

Volumem³)

0.8

1.5

2.4

3.7

4.2

Amount of mixingm³/h

3-6

5-12

9-18

14-28

16-32

Rotate speedrpm

17

17

17

17

17

Motor powerkw

7.5

11

15

18.5

22
